Aroflex UA-8116
Rapid offline encryption device - Wanted item

The Aroflex is probably the most successful crypto machines ever built by Philips Usfa. It was developed between 1976 and 1982 and over 4500 units were produced. It uses hardware-based encryption with NATO-style key management. The machines were used by NATO, the Dutch government, the Dutch Department of Defence, and the governments of some friendly nations, such as Norway and Canada. Aroflex is also known as UA-8116, BID 1100 and T-1000CA.

The device is based on a standard Siemens T-1000 telex machine, with a crypto unit mounted to the bottom of it. In the image on the right, the crypto unit is visible as a low-profile black cabinet, with a red button and two physical key locks: one for the INSERT key and one for the SPECAT key. This black and white photograph was used by Philips for promotional purposes [1]. More images below.

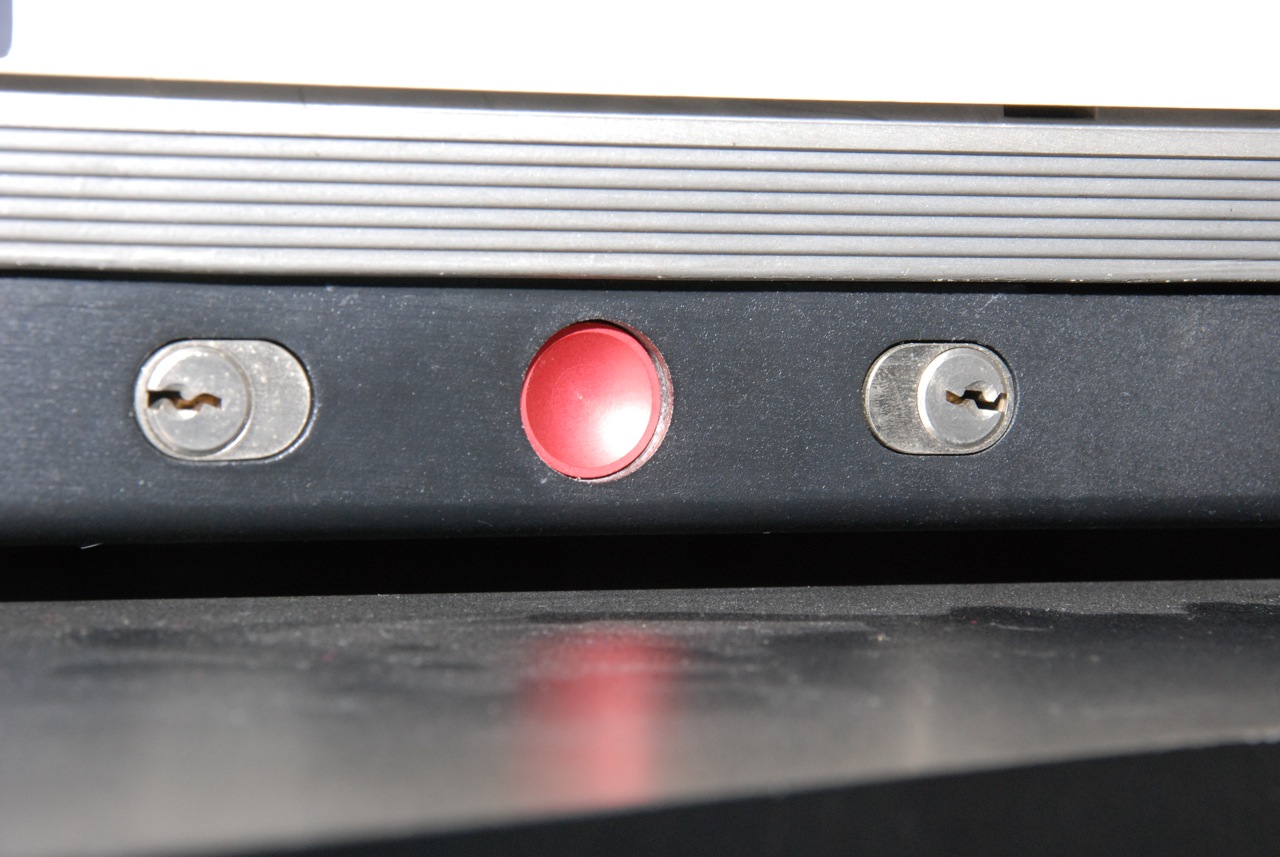

Whenever a message key was compromised, or when an army post was raided by the enemy, the operator just had to press the red button at the front of the crypto unit to flush the keys and all stored messages. This key is called ZEROIZE.

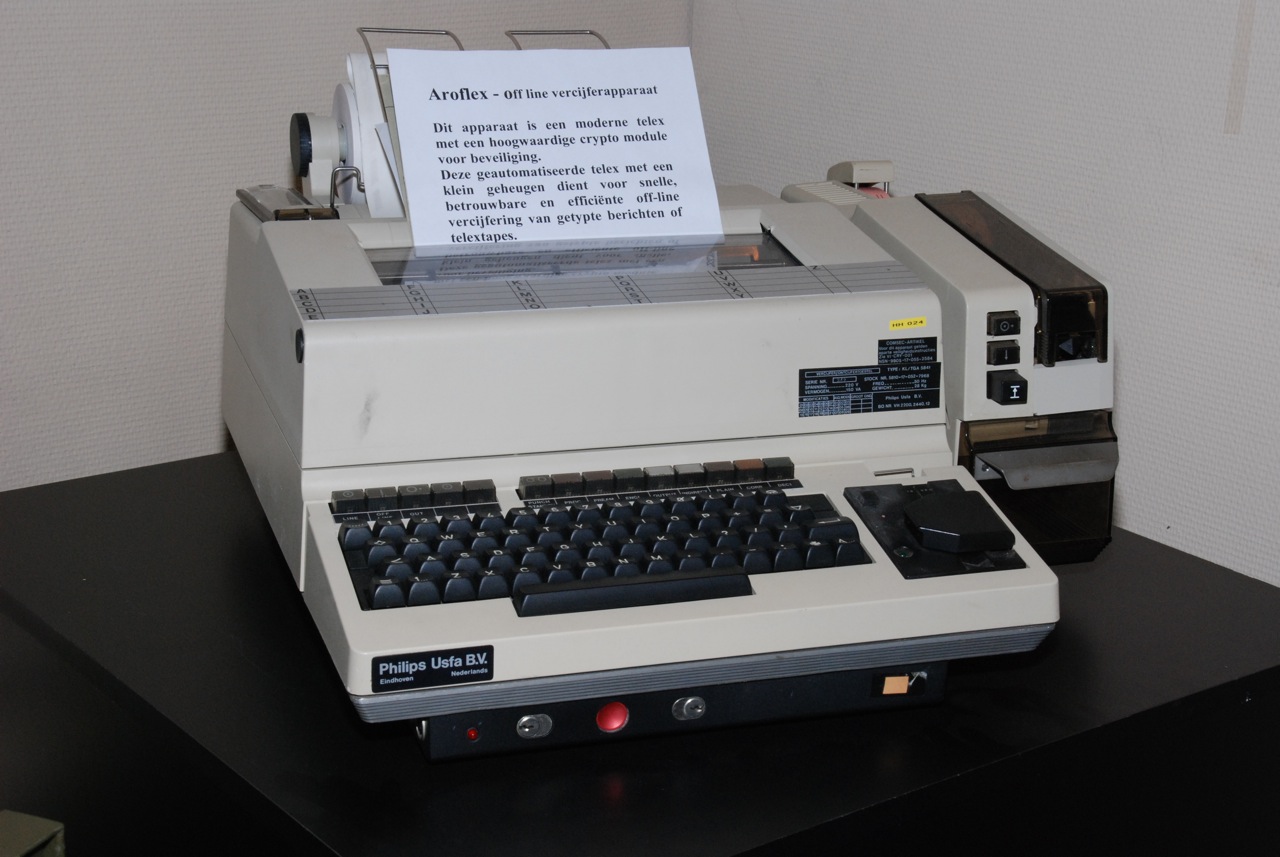

Aroflex at the Royal Dutch Signals Museum

It was a highly automated encryption/decryption machine for rapid, reliable and efficient off-line operation. It could also be used as a stand-alone message tape preparation unit. Some machines were equiped with appropriate interfaces to allow them to be connected directly to the line. The T-1000 could be operated at 50, 75 and 100 baud on-line, and 100 baud off-line.

Aroflex is crypto compatible with NATO CEROFF equipment, such as RACE and Picoflex. As such, it complies with the the symmetrical ACP 127 standard (Allied Communications Publication) [8]. The plaintext was converted into 5-letter groups, with 10 groups on each line. The Aroflex could store upto 6 pages (i.e. 120 lines of 10 crypto groups each) in its internal memory. The name Aroflex is probably derrived from Automatic Rapid Offline Encryption Device. In the early 1990s, Aroflex was succeeded by the Aroflex II (T-1285CA), but it came too late to be successful.

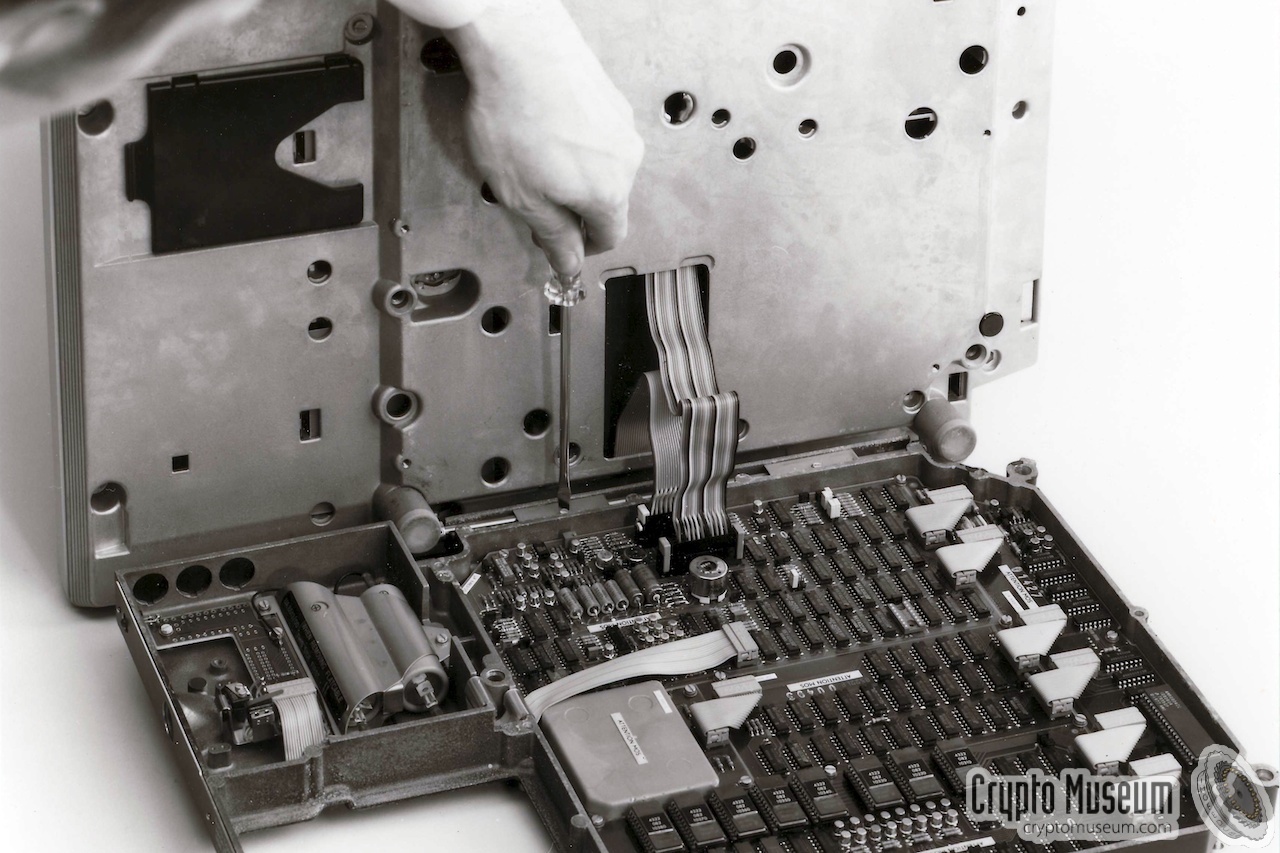

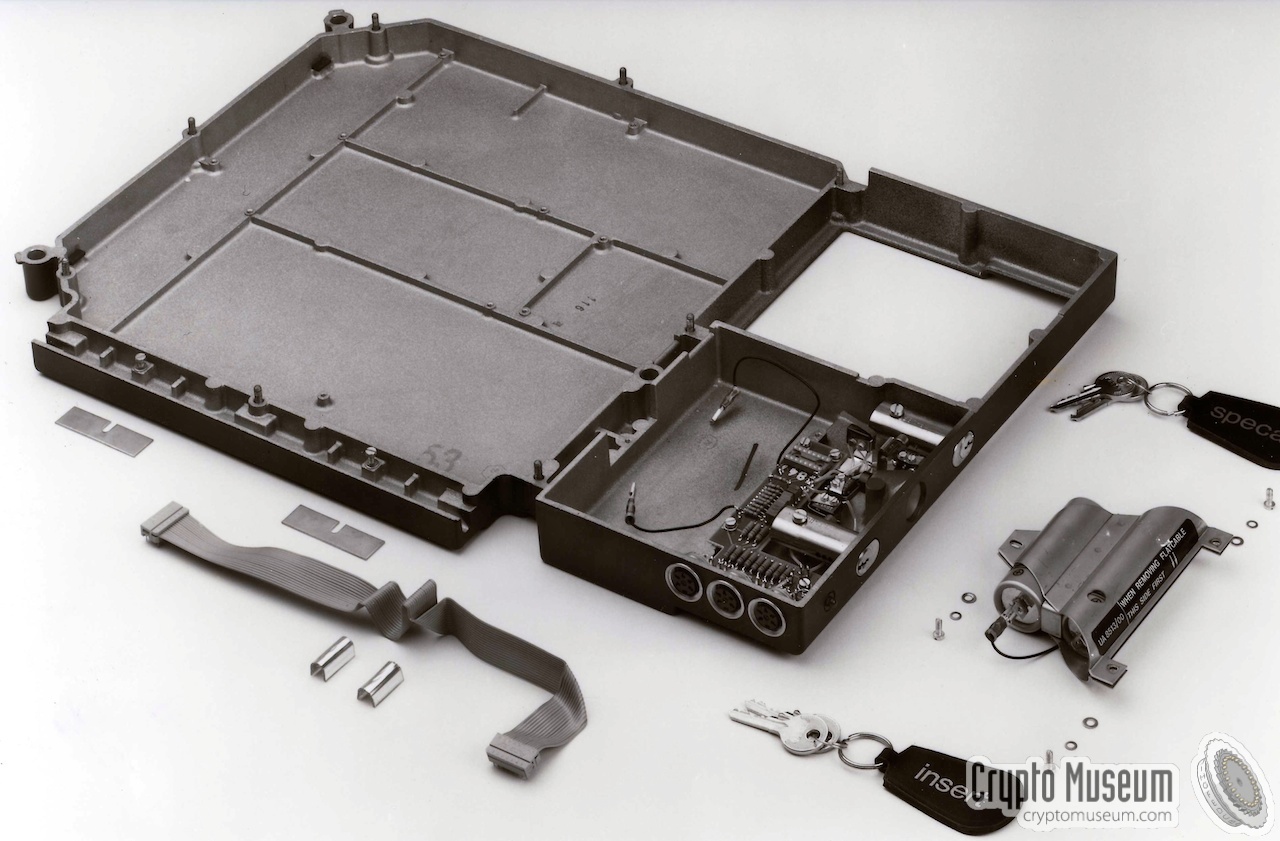

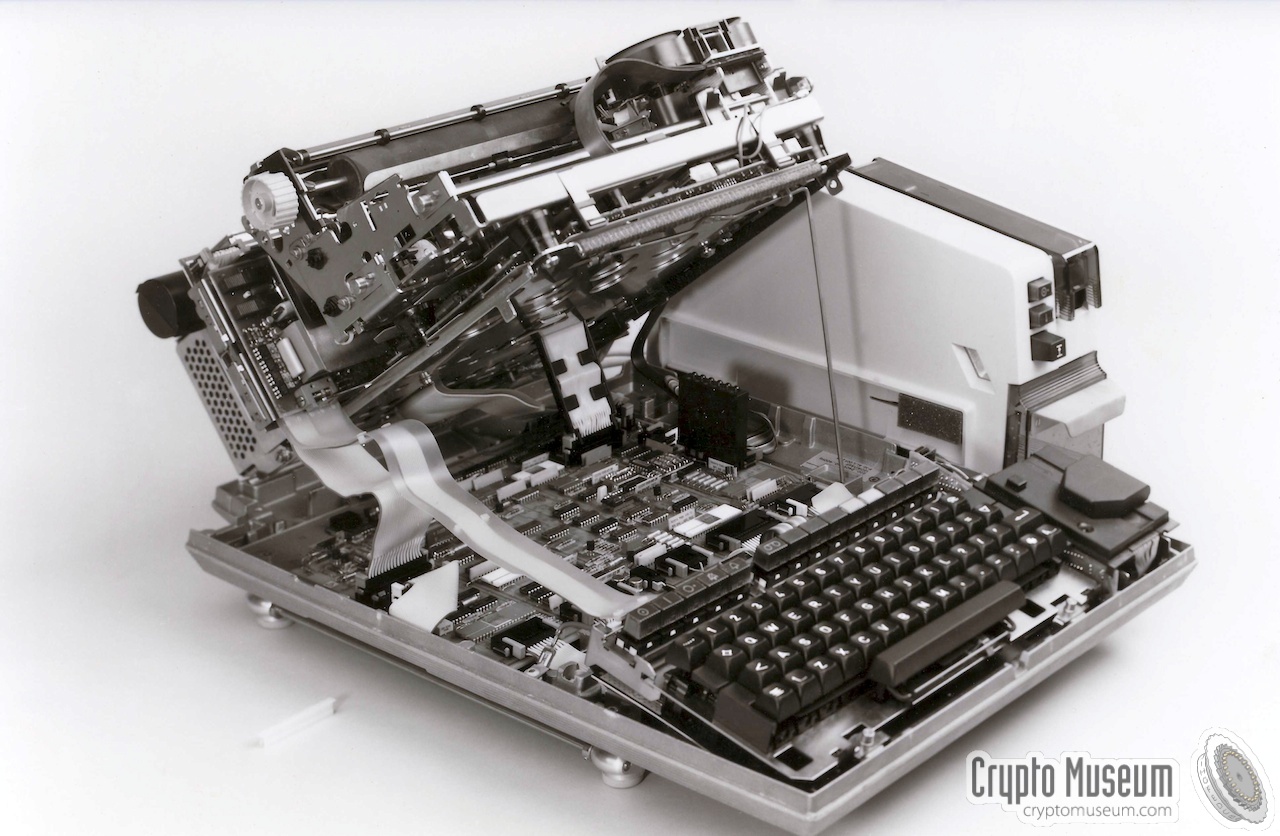

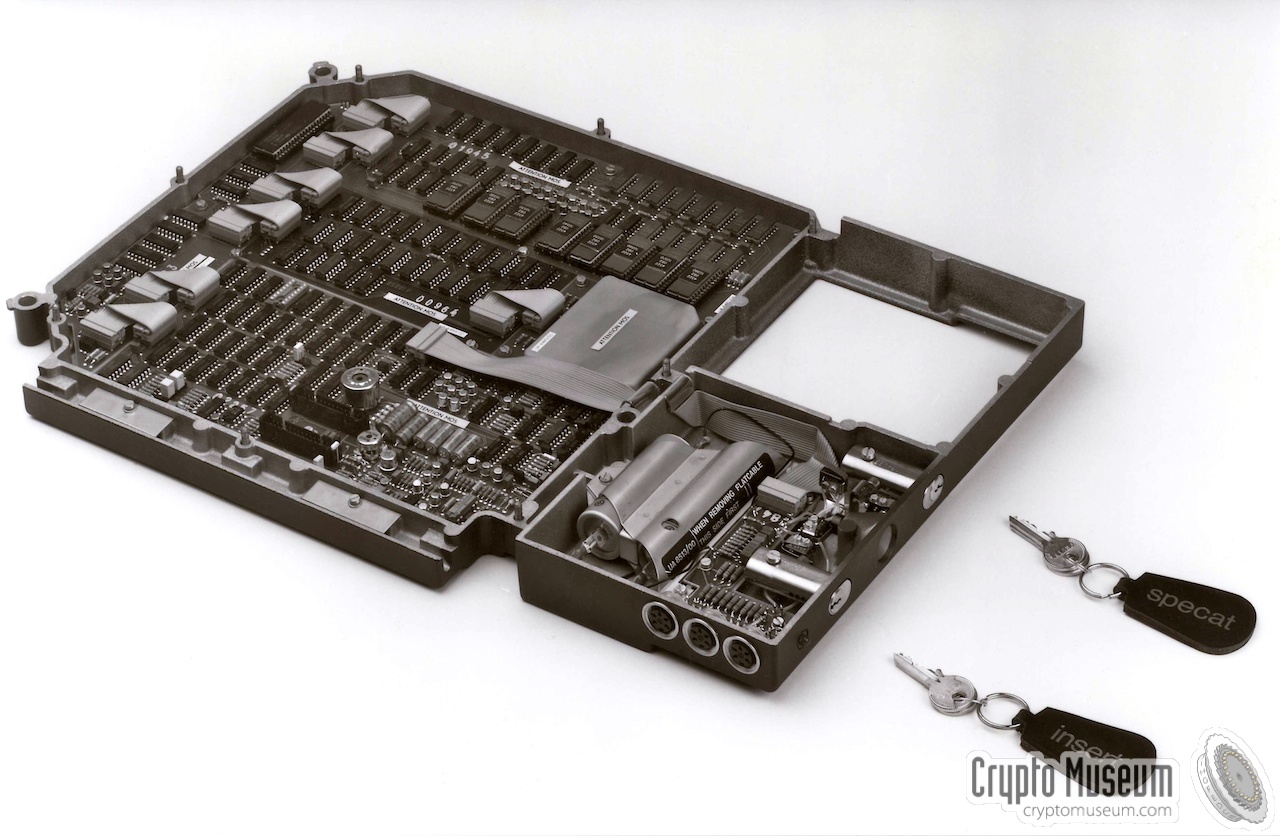

Promotional photograph of the Aroflex Completely assembled Aroflex unit Exploded view of the critial Aroflex components The black Aroflex shell, before mounting the electronic components Opened Siemens T-1000 unit Mounting the Aroflex unit to the bottom of the T-1000 The Aroflex at the Royal Dutch Signals Museum The two key-locks and the emergency button


Development
In 1974, NATO was looking for a replacement for the ageing American KL-7 cipher machine, also known as ADONIS or POLLUX. They initiated an evaluation under the code name CEROFF and invited several manufacturers to take part in the bidding. Aroflex was Philips' contribution to the bidding. Another bidder was the STK from Norway, offering RACE (KL-51) as an alternative.

When designing Aroflex, Philips wanted to use an existing teletype machine (telex) as its basis, and expand it with cipher capability. After dismissing AEG and PTI as possible partners in the project, they finally selected the Siemens T-1000. It was a modern telex machine which offered unparalleled expansion possibilities. The downside of the T-1000 was the rather 'open' construction, causing unwanted emission of radio signals (EMC). It took an enormous effort by both Siemens and Philips Usfa, to make the combined machine EMC and TEMPEST proof [4].

The outcome of the NATO CEROFF bidding match was inconclusive and ended in a remittance between Aroflex and the Norwegian RACE. NATO chose for a split-procurement and left it to the end-user to decide what equipment to order. As a result, Philips allowed RACE to use the Aroflex algorithm, making both machines compatible [4]. Eventually, Aroflex turned out to be the more popular machine in Europe and Canada [5], whilst the more robust RACE was adopted by the US.

Assembly
In 2009 we discovered a series of black & white photographs that were considered to have been lost when Philips Crypto BV was dissolved in 2003. The pictures show detailed images of the various assembly stages of the Aroflex. They were probably made for the service manual.

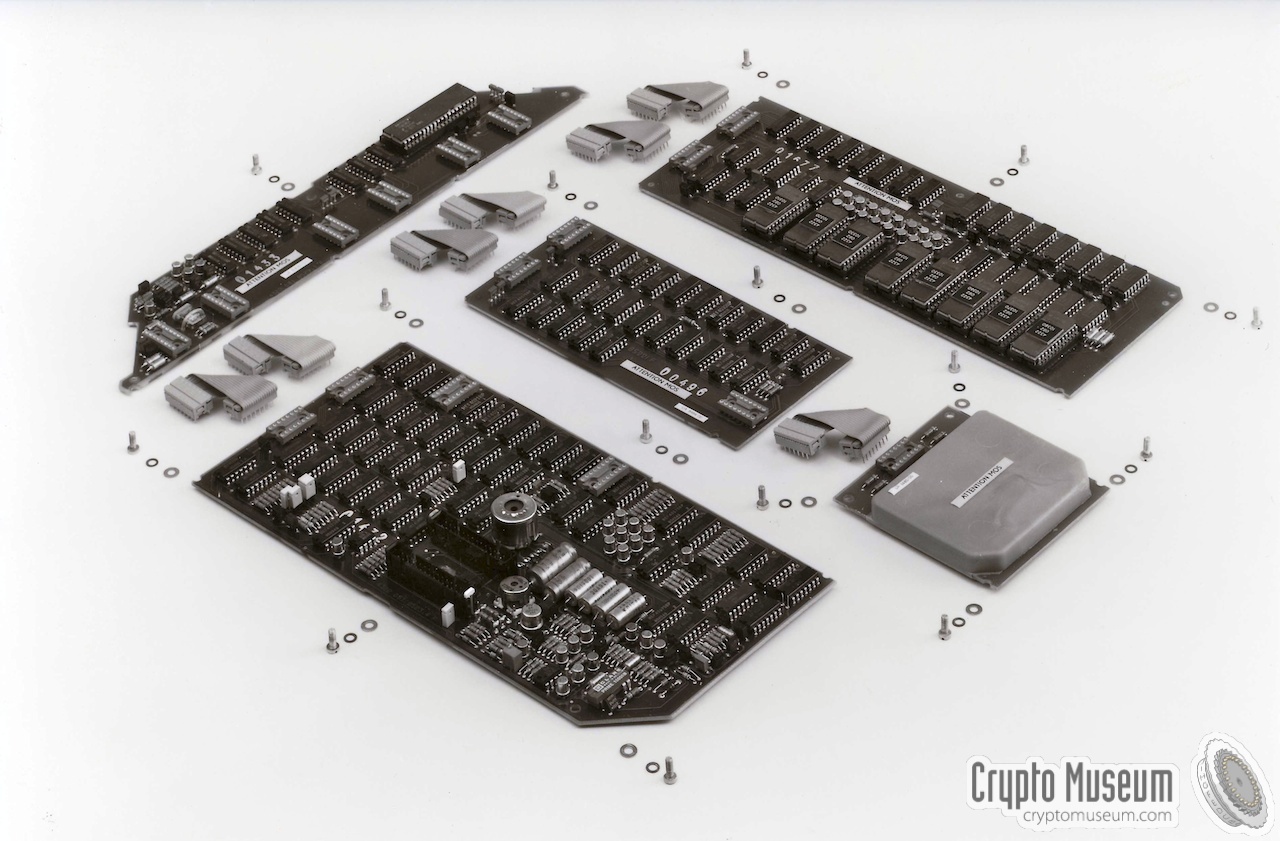

The image on the right shows an exploded view of the Aroflex' crypto add-on. It consists of four PCBs and a crypto-unit. The narrow board at the top left is the processor board. It contains an 8080 microprocessor and connects to the other boards via 6 flat-cables with 16 lines each.

The three boards in the middle are (from top to bottom) the memory-board, the mixer-board and the interface-board. The latter also contains the switched-mode power supply unit. All the voltages needed for the electronics are derived from a single 24V source inside the T-1000.

Exploded view of the critial Aroflex components

The small grey rectangle at the right is the crypto-module, also known as the crypto-heart. It contains a number of custom chips and was classified as confidential at the time. All units are connected together by means of a series of short flatcables, with plugs that fit into an IC socket.

Different versions
Once the initial Aroflex machine for NATO CEROFF was ready, Philips developed a number of variants, such as the line-connected mode, the civil version, the customer-unique key generators and numerous variations in operation. All machines for NATO were delivered as completely assembled machines, including the Siemens T-1000 teletype. Siemens sold the civil version.

The image on the right shows two important parts of the Aroflex. The large board on the left is the mixer. It combines plaintext and key stream into ciphertext. The blue resistor packs are inserted in the connectors during storage, as a temporary measure to protect the highly sensitive CMOS chips against static discharge.

The yellow block on the right is the actual crypto-module. It consists of a printed circuit board with a number of OQ4407 custom chips. As this too is a CMOS device, it is protected during storage by means of resistor packs.

Aroflex mixer-board and crypto-module

Apart from NATO, Aroflex was also sold to various departments of the Dutch government and also to the authorities of some friendly nations. As Philips Usfa had officialy won the CEROFF bidding, they received purchase orders from SHAPE and from most NATO countries, making Aroflex arguably Usfa's most successful cipher machine. It was very popular in Germany, Canada and Turkey. At the end of 1982, more than 2500 units had already been produced [4].

Siemens T-1000CA
In order to allow Siemens to sell the civil version of the Aroflex, Philips supplied the bare crypto module to Siemens. In this case, the combination was called T-1000-CA, in which the extension CA stands for Cryptographical Application. In the 1986 edition of Jane's Military Communication, the machine was offered by Siemens as the T-1000CA, with a black (rather than white) body stored in a suitable flight-case. According to an internal Philips Usfa memo [4], only one batch of 1500 crypto add-on modules was ever delivered to Siemens.

Note
The same modified Siemens T-1000 teleprinter was used for the Hagelin HC-550 and HC-580 cipher machines. Like the Aroflex, these machines had the crypto unit bolted to its bottom. Please note that although the Hagelin machines closely resemble the Aroflex, they were not compatible with Aroflex nor with any other NATO cipher machine.

Compromise
During the Cold War, the Aroflex was researched extensively by the Russian KGB and the East-German Ministerium für Staatssicherheit (MfS or Stasi). In 1982/1983 they managed to get hold of a machine that had mysteriously disappeared from a show. In 1986/1987, Department XI of the Stasi spent 30% of its capacity on targetting the machine. They tried to exploit the machine's unwanted eminations (TEMPEST), but were not successful [6].

Although they didn't manage to break the machine, they had a constant supply of keylists from someone at NATO. It was the same guy who had supplied them with the ELCROTEL keylists from 1972 onwards [7]. Although this means that the key was compromised, it does not mean that the machine was also compromised.

Key setting
Aroflex can store upto 26 keys:
  • 23 keys for 'ordinary' traffic.
  • 2 SPECAT (Special Category) keys (see note below).
  • 1 for encryption/decryption of the system indicators (i.e. the serial numbers of each key).
A new key is easily entered and takes the following steps:
  • Place the INSERT-key in the leftmost lock and turn it clockwise.
  • Enter the number of the required key store (address).
  • Enter (from the key list) the serial number of the key, the keying variables and the check word.
  • Remove the INSERT-key.
The two SPECAT keys can only be entered and/or used if the physical SPECAT-key is entered in the rightmost lock and turned clockwise.

As an alternative to the above procedure, it was also possible to enter the keys via a paper tape that was read by the built-in tape reader. In addition, the crypto unit has a special connector through which the keys can be entered using a 'key filler' or a 'key gun'.

Glossary

AEG   Algemeine Elektricitäts Gesellschaft
Former German manufacturer of electronic equipment and components. Started co-operation with Telefunken in 1967 and with Siemens in 1969, trading as AEG Telefunken. More...

CEROFF   Cipher Equipment Rapid Off-Line
Code name of a NATO evaluation in 1974 to find a replacement for the ageing KL-7 cipher machine. Examples of CEROFF compatible equipment are Aroflex, RACE (KL-51) and Picoflex.

NATO   North Atlantic Treaty Organization
(Wikipedia) (Website)

PTI   Philips Telecommunicatie Industrie
Former Philips subsidary specializing in telecomminication solutions.

RACE   Rapid Automatic Cryptographic Equipment
Acronym used for the NATO KL-51 cipher machine that was used for NATO CEROFF communication alongside the Philips Aroflex. RACE was manufactured by Standard Telefon og Kabelfabrik A/S in Norway.

SHAPE   Supreme Headquarters Allied Powers Europe
Headquarters of the Allied Command Operations (ACO), one of NATO's two strategic military commands. (Website)

SPECAT   Special Category

ZEROIZE   General expression for deleting the cryptographic keys and other variables from an encryption device in case of a compromise or seizure.

References
  1. Philips Usfa BV, Aroflex promotional photograph
    Crypto Museum Archive.

  2. Philips Usfa BV, Aroflex internal assembly photographs
    Crypto Museum Archive.

  3. Jane's Military Communication 1986
    ISBN: 0-7106-0824-1

  4. Philips Usfa, Internal Memo L/5636/AvdP/JG
    23 August 1982, page 5.

  5. Museum pages of Canada's Foreign Service Communicators
    RACE: Rapid Automatic Cryptographic Equipment

  6. Jörg Drobick, KGB and MfS research of the Siemens T-1000-CA ELCROTEL.
    Website: Der SAS- und Chiffrierdienst (SCD). German. Retreived Augus 2011.

  7. Bode Wegman, Militäraufklärung der NVA, der Geheimdienst der NVA
    ISBN 3-89574-580-4. p. 217-218.

  8. Combined Communication-Electronics Board, Tape Relay Procedures
    ACP-127(G) Standard. November 1988.
